Heavy-Duty Steel Flatbed for Chevrolet 5500 Cab & Chassis

Built for Strength. Designed for Work.

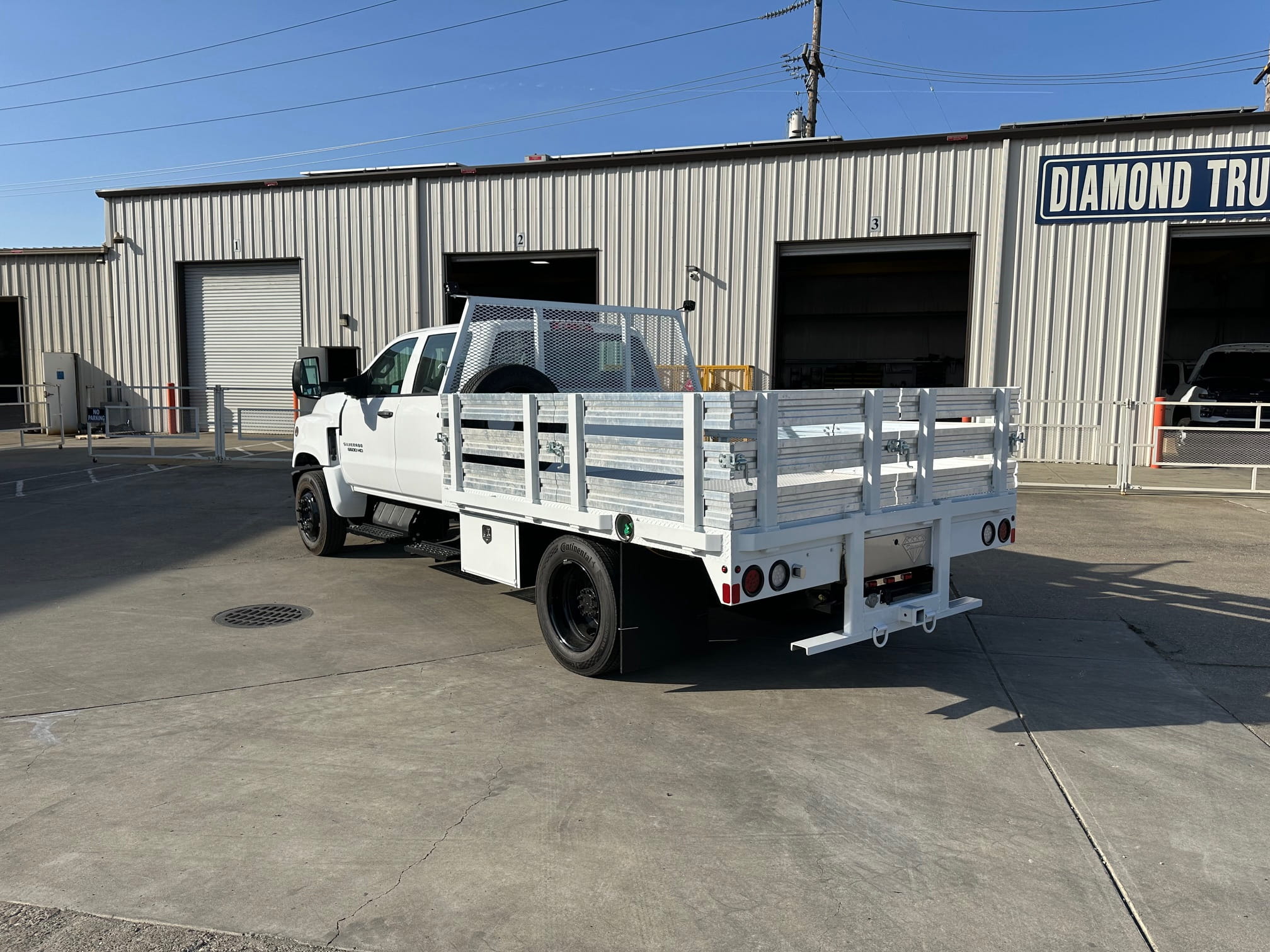

This custom Diamond Truck Body flatbed is engineered for the 2025 Chevrolet 5500 dual rear wheel cab & chassis (60″ CA). Built from heavy-gauge steel with reinforced structural components, this bed is designed for contractors, equipment operators, towing professionals, and fleet applications requiring maximum durability and versatility.

Bed Dimensions & Construction

• Approximate Size: 96″ wide x 108″ long

• Flooring: 12-gauge steel diamond plate

• Crossmembers: 5″ structural rail crossmembers on 12″ centers

• Rear Apron: 12-gauge steel with integrated light cutouts

• Headboard: Tapered design with half-and-half cab guard

• Finish: White

This structure provides superior load support and long-term resistance to heavy-duty jobsite demands.

---

Hitch & Towing Capabilities

• 18″ x 18″ recessed trap door

• 30,000 lb removable ball system (Bull Dog or equivalent)

• Class 5 hitch with swing D-ring

• Reinforced rear tow hooks tied into truck frame

• Shear plate mount

• Dual 7-way trailer plugs:

  • 7-way RV

  • 7-way round pin (Cole Hersee style)

Designed to handle demanding towing and hauling applications with confidence.

---

Storage & Organization

• (2) Underbody toolboxes (approx. 18″ x 18″ x 30″)

  • Street side: (2) 3″ drawers

  • Curb side: (2) adjustable shelves

• 24″ aluminum slat side gates with steel stakes (3-panel design)

• Spare tire mount to bulkhead (if required)

Built to keep tools organized and secure while maintaining accessibility on the job.

---

Lighting & Electrical

• (2) Adjustable 4″ LED work lights mounted on headboard (wired to upfitter switch)

• 3/4″ LED stop/turn/tail bullet lights

• ECCO 510 back-up alarm

• Integrated light cutouts in rear apron

High-visibility lighting improves jobsite safety and road compliance.

---

Tie-Down & Load Security

• Flat bar tie-down rails (approx. 2″ x 3/8″) on sides and rear

• (4) Heavy-duty swivel D-ring tie-downs at each inside corner

• 1/2″ tie-down points

Engineered for securing equipment, materials, and heavy cargo.

---

Additional Features

• Heavy-duty underbody sealer applied

• Mudflaps (no logo)

• Reinforced rear structure

This flatbed delivers strength, towing performance, and organized storage — making it ideal for contractors, fleet managers, agricultural operations, and heavy equipment transport.
