Q20700

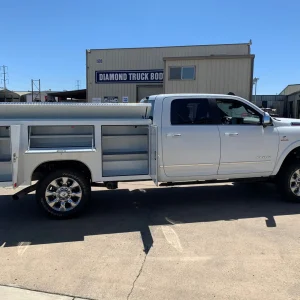

8′ FOOT “STANDARD” DIAMOND SERVICE BODY. MODEL # 16-38-98-OT-B49. PAINTED PPG WHITE SINGLE STAGE.

–OPEN TOP LIDS / FLAT W/ SQUARE CORNERS

–16″ DEEP COMPARTMENTS / 49″ WIDE BED AREA

–38″ TALL CABINETS. 16″ DEEP. COMPARTMENTS

–STAINLESS STEEL T-HANDLE LOCK POCKETS 3PT. LOCKING

–DOUBLE SIDED CYLINDER LOCKS. KEYED ALIKE

–[2] ADJ. SHELVES IN FRONT AND REAR COMPARTMENTS

–[1] SHELF IN CURB SIDE HORIZONTAL COMPARTMENT.

–12″ TALL TAILGATE. SELF SUPPORTING

–6″ REAR STEP BUMPER WITH L.E.D. LIGHTS.

–COAT BUMPER WITH SPRAY ON BED LINER. [POLYUREA]

–UNDER COATED WITH POLYUREA SPRAY ON COATING

–PAINT PPG DELFLEET INSIDE AND OUT

–DEF FLUID FILL IN STREET SIDE HORIZONTAL COMPARTMENT.

POLISHED ALUMINUM OVERLAY PACKAGE. DIAMOND PLATE OVERLAY ON OPEN TOP LIDS, FRONT ROCK GUARDS, AND TAILGATE GUARD.

[4] FOUR ROLL OUT DRAWERS MOUNTED IN STREET SIDE [DRIVERS SIDE] FRONT COMPARTMENT. [2]=3″, [1]=4″, [1]=5″. 250LBS CAPACITY ROLLER BALL BEARING SLIDES. SINGLE SPRING LOADED HD LATCH. PAINT WHITE.

[4] FOUR ROLL OUT DRAWERS MOUNTED IN STREET SIDE [DRIVERS SIDE] REAR COMPARTMENT. [2]=3″, [1]=4″, [1]=5″. 250LBS CAPACITY ROLLER BALL BEARING SLIDES. SINGLE SPRING LOADED HD LATCH. PAINT WHITE.

[1] ONE ROLL OUT DRAWER PLACED IN STREET SIDE HORIZONTAL COMPARTMENT. [1] 3″ DRAWER. MOUNT HIGH IN COMPARTMENT. 250LBS CAPACITY ROLLER BALL BEARING SIDES. DOUBLE SPRING LOADED HD LATCH. PAINT WHITE.

[2] TWO RECESSED D-RING TIE DOWNS IN BED AREA. REAR LOCATION. ONE EACH SIDE.

100 GAL TRANSFER TANK. 24″ X 23″ 48″. 2″ FILL BUNGS ONE EACH SIDE OF TANK. 3/4″ DRAIN PLUG ON DRIVER SIDE, DISCHARGING THROUGH FLOOR. PAINT SIMPLE D-RINGS ON EACH SIDE OF TANK FOR LIFTING TANK OUT. WHITE.

GPI G20 TRANSFER FUEL PUMP. AUTOMATIC SHUT OFF NOZZLE. INSTALL ON PASSENGER SIDE. SWIVEL END PROVIDE.
