26068

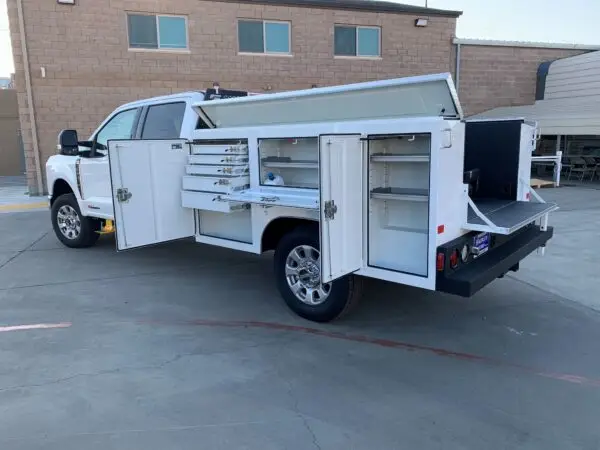

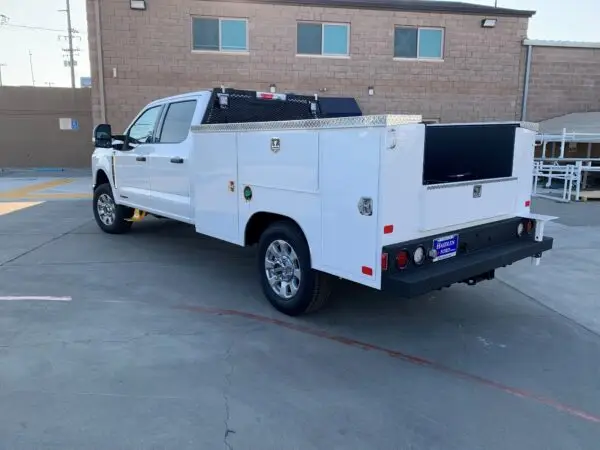

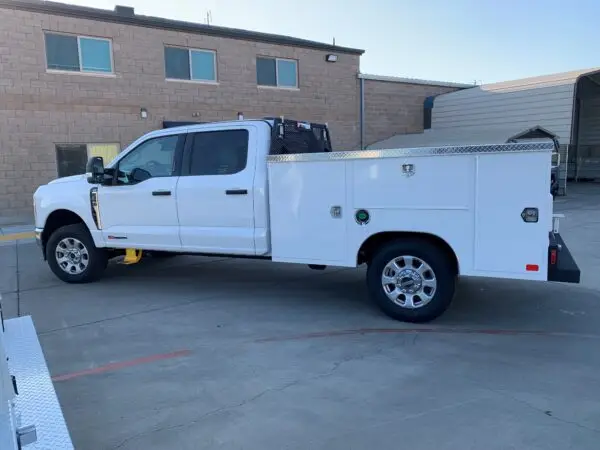

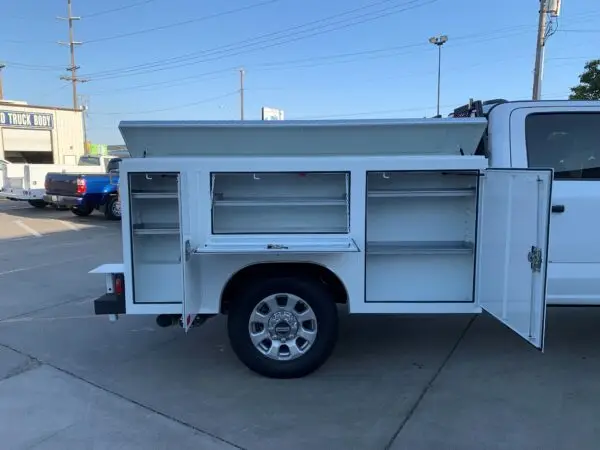

16-42-98-OT-B49 DIAMOND TRUCK BODY PAINTED PPG AUTO WHITE: AND INSTALLED. TO MOUNT ON 57″ CA

— 16″ DEEP COMPT WITH 49″ WIDE BED AREA
— CHROMED T HANDLE 3 POINT LOCKING MECH
— ALL DOORS KEYED ALIKE SS LOCK POCKETS
— 2 SHELVES IN EA VERTICAL COMPARTMENT
— 1 SHELF IN EA HORIZONTAL COMPARTMENT
— DOUBLE PANEL DOORS DOUBLE DOOR SEALS

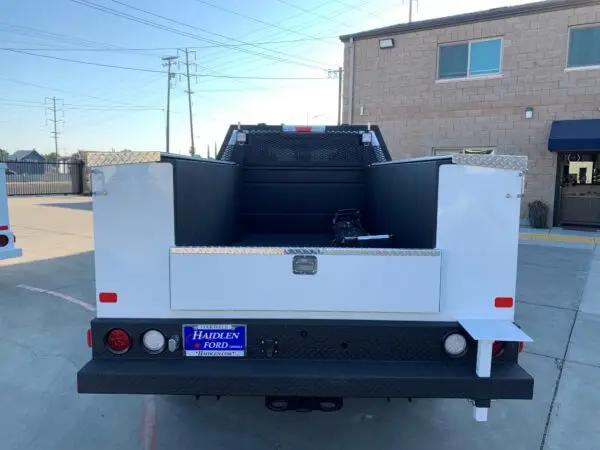

— 12″ TALL TAILGATE

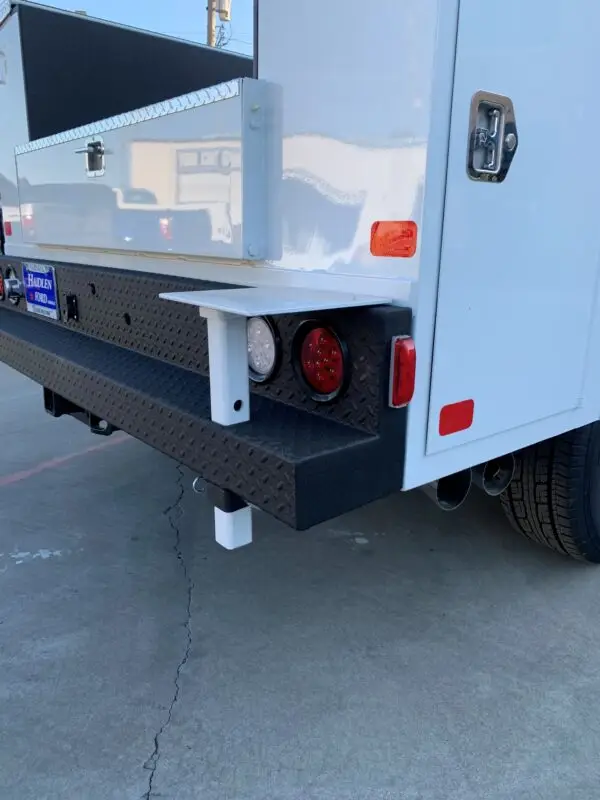

— REAR STEP BUMPER WITH LIGHTS MOUNTED IN KICK PLATE ( BEDLINER)
— UNDERBODY SEALED WITH HD UNDERBODY SEALER
— BODY SIDE PACS MADE OF A 60 STEEL
— 12 GA STEEL DIAMOND PLATE FLOOR.
— 3/16 FRONT AND REAR CROSS MEMBERS

— OPEN TOP LIDS FLAT TOP SQUARE CORNERS OPEN TOP TRAY APPROX 4″ DEEP WITH DIVIDERS EVERY 4″ REMOVABLE. TRAY APPROX 12″ FRONT TO BACK

98″ POLISHED ALUMINUM OVER LAY KIT
– OVER TOP LIDS.
– TOP OF TAILGATE GUARD.
– ROCK GUARDS.

7-WAY TRAILER PLUG

— Industry standard 7 way RV trailer blade connectors for towing solutions.
— 7 way blade connector

98″ INTERNAL SLIDE BAR LOCK

Lock all compartments on one side with one pull handle (Located on the rear end panel). Operates independent of your door locks for added security.

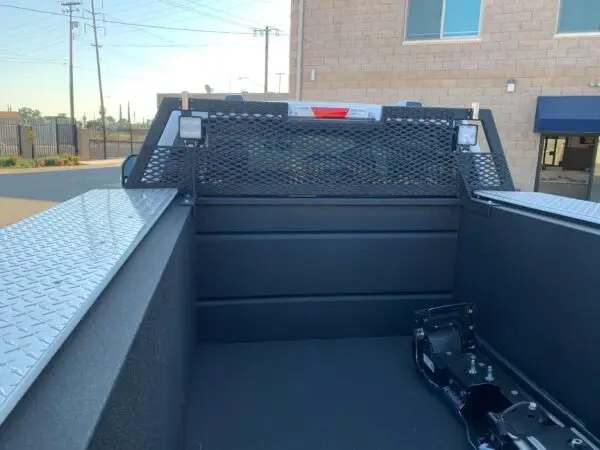

UTILITY BODY BULLET BEDLINER [BLACK]
–BED AREA + COMPLETE CAB GUARD + FULL BUMPER

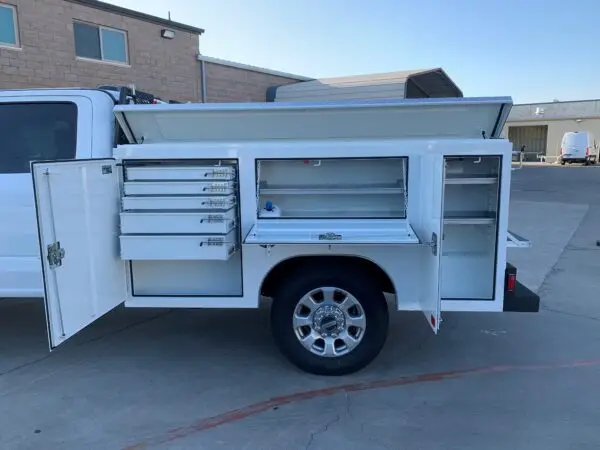

PULL-OUT DRAWERS (SINGLE WHEEL) DRIVER SIDE FRONT****

HEAVY DUTY ROUND TIE DOWNS D-RING TYPE WELDED IN BED AREA

E/P ALUMINUM FRONT END PANEL. FULL ***

TAPER CAB GUARD FULL WINDOW PROTECTION EXPANDED METAL COVER ****TIGHT MEASUREMENTS ( BEDLINER)

L.E.D. WORK LIGHT (WIRED TO SWITCH IN CAB) WILL UTILIZE

REMOVABLE VISE BRACKET PLATFORM BUMPER HITCH SLEEVE
